Parker Hydraulic Compact Cylinders
Parker Hydraulic Compact Cylinders

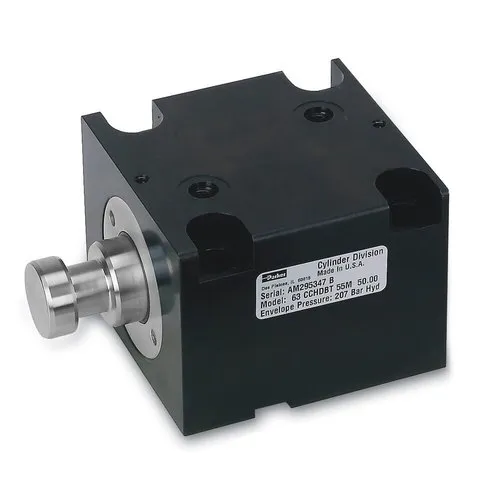

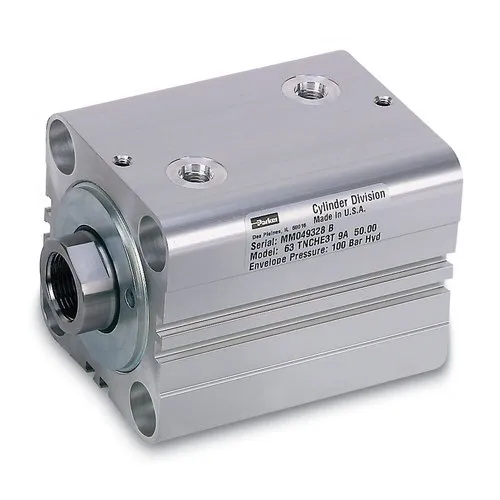

- Series CHD/CHE
- Strokes CHE-up to 150mm/CHD - up to 100mm
- Seal Classes CHE/CHD -1 - Standard Nitrile & Polyurethane
- Typical Fluids CHE/CHD- Hydraulic Oil, MIL-H-5606 Oil
- Working pressure CHE - up to 140 bar/CHD - up to 207 bar
- Temperature range CHE - -23 DegreeC to +121 DegreeC (depending on seal class) /CHD - -23 DegreeC to +121 DegreeC
Description
About this item
-
Compact Hydraulic Cylinders Series CHE/CHD
Primary Seal – polyurethane rod seal with multiple sealing edges is self-compensating and self relieving to withstand pressure variations and conform to mechanical deflection that may occur
Secondary Seal – Rod Wiper – wipes clean any oil film adhering to the rod on the extend stroke and cleans the rod on the return stroke.
Cylinder Body – corrosion resistant aluminum alloy. Hard anodized I.D for long wear. Sensor mounting grooves on three sides.
Magnetic Piston Option – for solid state or reed switch actuation.
