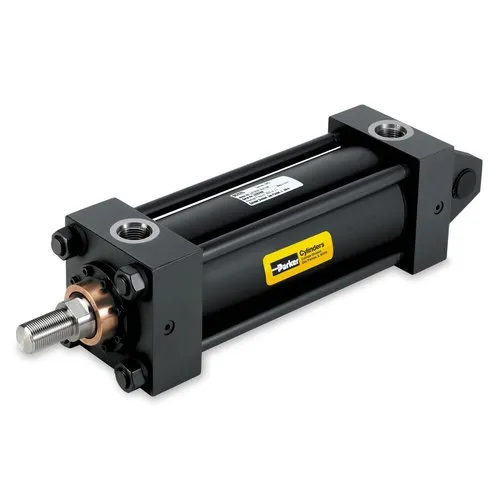

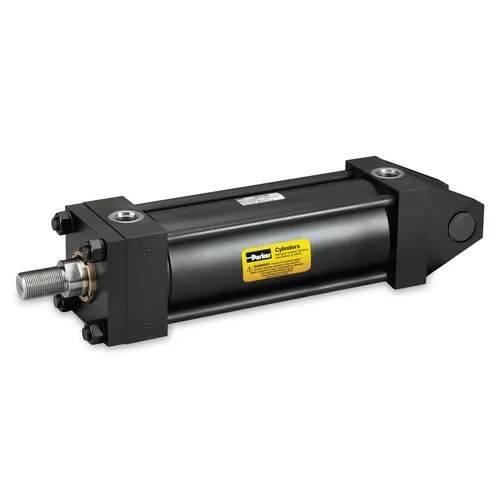

Parker Heavy Duty 2H/3H Hydraulic Cylinder
Parker Heavy Duty 2H/3H Hydraulic Cylinder
- Standard Construction Square Head - Tie Rod Design
- Nominal Pressure 3000 psi1
- Standard Fluid Hydraulic Oil
- Standard Temperature -10 DegreeF to +165 DegreeF2
- Bore Diameters 1.50
- Piston Rod Diameter .625
- Rod Ends Four Standard Choices - Specials to Order
- Heavy Duty Service ANSI/(NFPA) T3.6.7R3 - 2009
Description
About this item
-

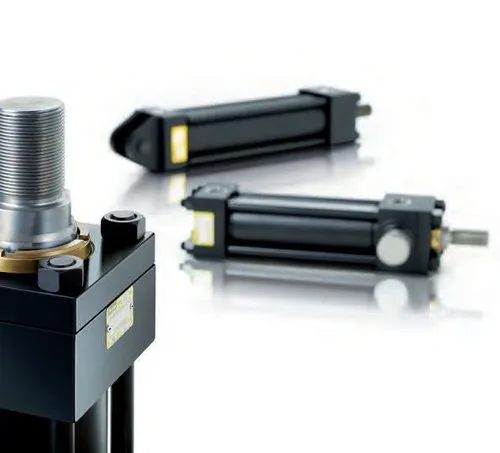

Heavy Duty Hydraulic Cylinders Series 2H / 2HD & 3H / 3HD
Series 2H cylinders set the standard for performance, durability, and trouble free operation. Parker superior design, the use of high quality materials and stringent manufacturing practices provide all customers with long cylinder service life and reduced operating costs. Design features such as the “Jewel” rod gland, hard chrome plated piston rods, and stepped cushions provide increased machine productivity through reduced downtime, faster cycle times, and improved system efficiency. Every Parker cylinder is individually tested before leaving our plant to assure proper performance and leak free operation. All Parker Cylinder products carry an eighteen month warranty. Select Parker Series 2H cylinder for your hydraulic cylinder requirements. Parker Series 2H will provide the value and performance you need for all of your industrial hydraulic application demands.
Standard Specifications • Heavy Duty Service – ANSI/(NFPA) T3.6.7R3 - 2009 Specifications and Mounting Dimension Standards • Standard Construction – Square Head – Tie Rod Design • Nominal Pressure – 3000 psi1 • Standard Fluid – Hydraulic Oil • Standard Temperature – -10°F to +165°F2 • Bore Diameters – 1.50" through 6.00" (Larger sizes available)
• Piston Rod Diameter – .625" through 4.000" • Mounting Styles – 18 standard styles at various application ratings • Strokes – Available in any practical stroke length • Cushions – Optional at either end or both ends of stroke. “Float Check” at cap end. • Rod Ends – Four Standard Choices – Specials to Order
