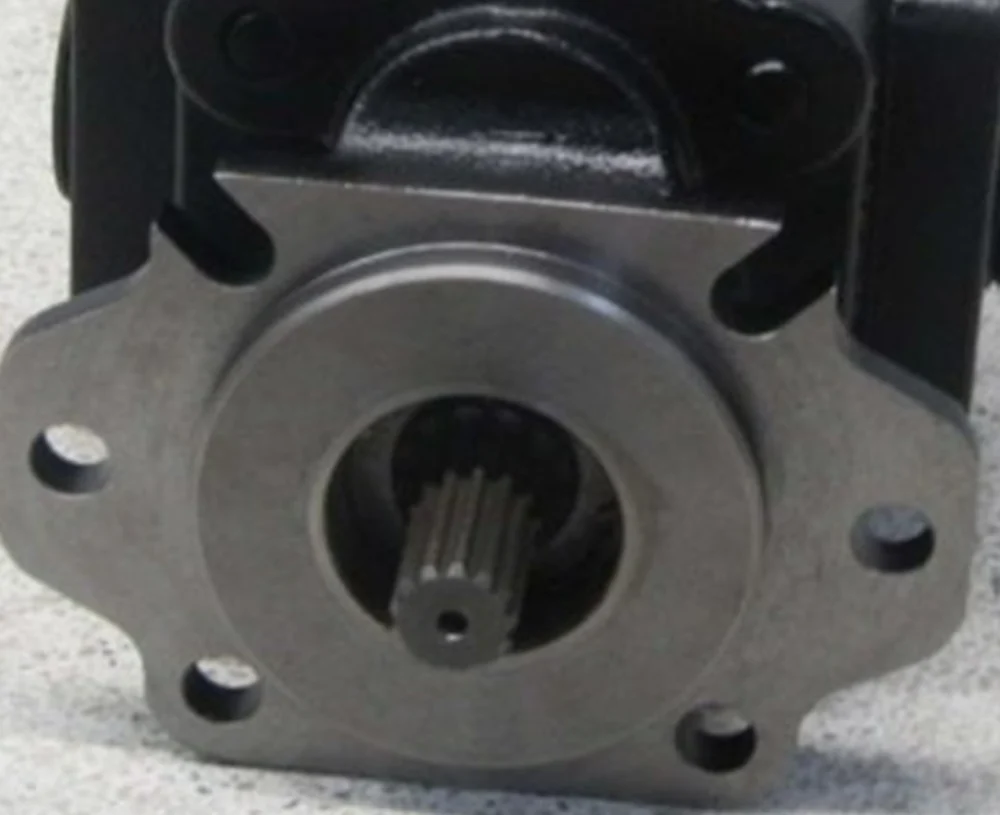

Parker Hydraulic Gear Pump
Parker Hydraulic Gear Pump
- Pump type Heavy-duty,aluminium,external gear.
- Mounting SAE,rectangular,thru-bolt standard specials on request
- Speed 500 - 5000 rpm,see Technical Data
- Drive Drive direct with flexible coupling is recommended.
- Inlet pressure Operating range 0.8 to 2 bar abs. Min. inlet pressure 0.5 bar abs. Short time without load. Consul
- Hydraulic fluids Hydraulic oil HLP,DIN 51524-2
- Fluid temperature Range of operating temperature -15 to +80 DegreeC. Max. permissible operating pressure dependent o
- Range of ambient temperature -40 DegreeC to +70 DegreeC
Description
About this item
-
Heavy-duty aluminium Pumps Series PGP 500
PGP 500 pumps offer superior performance, high efficiency and low noise operation at high operating pressures. They are produced in four frame sizes (PGP 502, PGP 505, PGP 511, PGP 517) with displacements ranging from 0.8 to 70 cm³/rev. A wide variety of standard options is available to meet specific application requirements.
Characteristics • Up to 280 bar continuous operation High strength materials and large journal diameters provide low bearing loads for high pressure operation. • Low noise PGP 502 - 9 tooth gear profile, PGP 505 and 517 - 13 tooth gear profile, PGP 511 - 12 tooth gear profile and optimized flow metering provide reduced pressure pulsation and exceptionally quiet operation.
• High efficiency Pressure balanced bearing blocks assure maximum efficiency under all operating conditions. • Application flexibility International mounts and connections, integrated valve capabilities and common inlet multiple pump configurations provide unmatched design and application versatility. • Large range of integrated valves
Request
Callback
Additional Information:
Item Code: PGP
Delivery Time: 10 to 12 Weeks
